7/8" X 3/4" BORE NO SPACERS (4LH & 4RH)

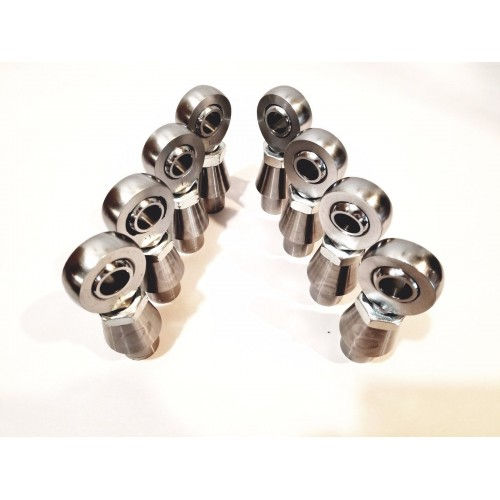

This 7/8"-14 to 3/4" bore Rod End Kit includes 4 right-hand and 4 left-hand chromoly rod ends with 7/8"-14 threads and 3/4" (.750) bore holes, each featuring a .875" ball width and a Teflon Kevlar liner for added durability and wear resistance. Built from 4130 chromoly steel with a radial load capacity of 55,692 lbs, the kit also includes 4 RH and 4 LH jam nuts, along with 4 RH and 4 LH weld-in tube adapters. Each adapter measures 2-5/8" in length, 1-3/4" in width, and is threaded 7/8"-14, designed to fit into 1.5" OD tubing with a .120" wall or a 1.25" ID tube.
