5/8 X 5/8 BORE W/ HMS 5/8-10MM (1LH & 1RH)

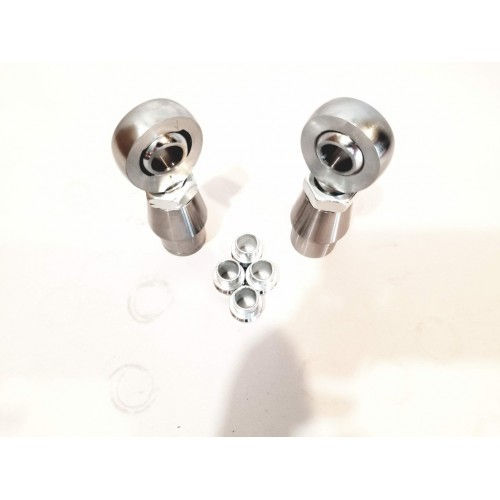

This 5/8 Rod End Kit for 4-link suspension systems includes 2 right-hand and 2 left-hand rod ends with 5/8"-18 threads and 5/8" bore holes, 2 RH and 2 LH jam nuts, 2 RH and 2 LH tube adapters, and 4 high-misalignment spacers (5/8"-10mm). The rod ends are made from 4130 heat-treated chromoly with a 3/4" ball width and support a radial load of 18,800 lbs. Tube adapters are 1-7/8" long, 1-1/4" wide, and designed to fit 1-1/4" OD tubing with a 0.120" wall, offering a 1.5" mounting width.
