5/8 X 5/8 BORE W/ HMS 5/8-1/2" (8LH & 8RH

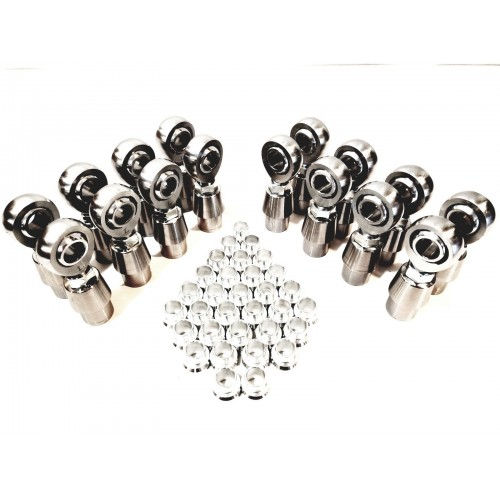

This 5/8 Rod End Kit is a complete 4-link suspension solution featuring 8 right-hand and 8 left-hand rod ends with 5/8"-18 threads and 5/8" (.650) bore holes, along with matching RH and LH jam nuts and tube adapters. The rod ends are constructed from 4130 heat-treated chromoly, offering a 3/4" (.750) ball width and a radial load rating of 18,800 lbs. Included are 32 high-misalignment spacers (5/8"-1/2"). The tube adapters are 1-7/8" long and 1-1/4" wide, threaded 5/8"-18 to fit 1-1/4" OD tubing with a 0.120" wall, providing a mounting width of 1.5".
