5/8 X 5/8 BORE W/ HMS 5/8-1/2" (4LH & 4RH)

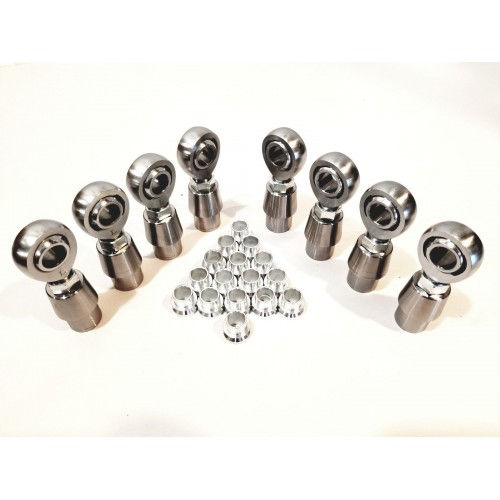

This 5/8 Rod End Kit is designed for 4-link suspension systems and includes 4 right-hand and 4 left-hand rod ends with 5/8"-18 threads and 5/8" (.650) bore holes, along with matching RH and LH jam nuts and tube adapters. The rod ends are made from 4130 heat-treated chromoly, feature a 3/4" (.750) ball width, and support a radial load of 18,800 lbs. The kit also includes 16 high-misalignment spacers (5/8"-1/2"). Tube adapters are 1-7/8" long, 1-1/4" wide, and threaded 5/8"-18 to fit 1-1/4" OD tubing with a 0.120" wall, providing a 1.5" mounting width.
