5/8 X 5/8 BORE W/ HMS 5/8-1/2" (2LH & 2RH)

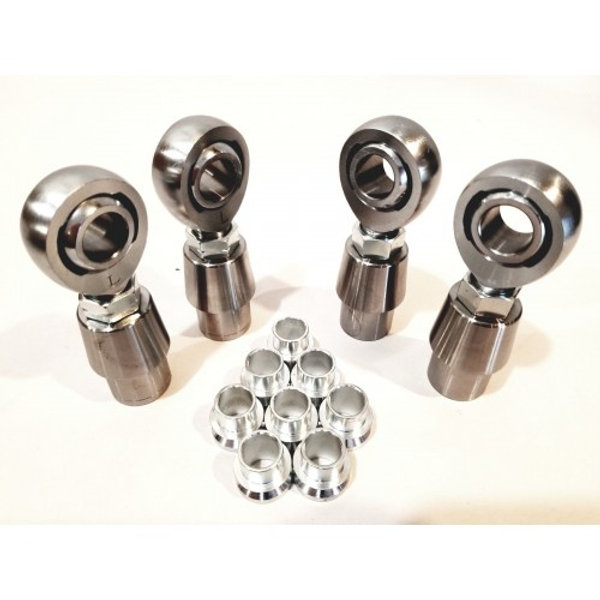

This 5/8 Rod End Kit is ideal for 4-link suspension setups and includes 2 right-hand and 2 left-hand rod ends with 5/8"-18 threads and 5/8" (.650) bore holes, along with matching RH and LH jam nuts and tube adapters. The rod ends are crafted from 4130 heat-treated chromoly, featuring a 3/4" (.750) ball width and a radial load rating of 18,800 lbs. The kit also comes with 8 high-misalignment spacers (5/8"-1/2"). Tube adapters measure 1-7/8" in length, 1-1/4" in width, and are threaded 5/8"-18 to fit 1-1/4" OD tubing with a 0.120" wall, providing a 1.5" mounting width.
