5/8 X 5/8 BORE NO SPACERS (8LH &8RH)

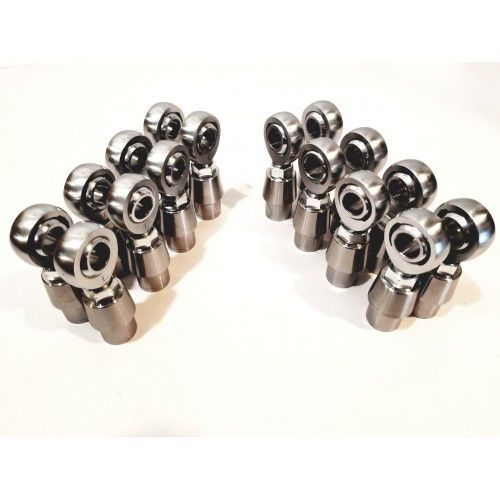

This 5/8 Rod End Kit is built for robust 4-link suspension setups and includes 8 right-hand and 8 left-hand rod ends with 5/8"-18 threads and 5/8" (.650) bore holes, along with matching RH and LH jam nuts and tube adapters. The rod ends are crafted from 4130 heat-treated chromoly, featuring a 3/4" (.750) ball width and a high radial load capacity of 18,800 lbs. The included tube adapters are 1-7/8" long and 1-1/4" wide, with 5/8"-18 threads to fit 1-1/4" OD tubing with a 0.120" wall, offering a mounting width of 1.5".
