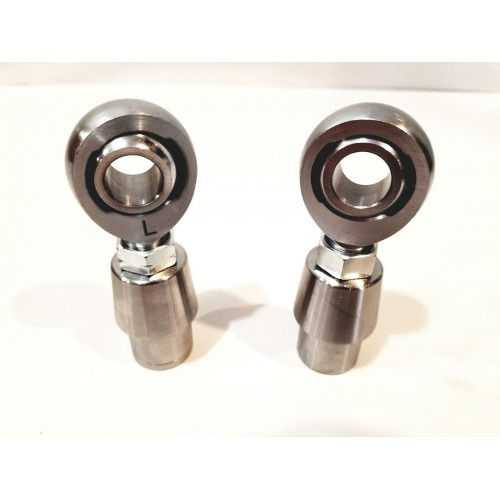

5/8 X 5/8 BORE NO SPACERS (1LH & 1RH)

The 5/8" Chromoly Heim joint kit includes 1 left-hand and 1 right-hand rod end with 5/8"-18 threads and a 5/8" (.650) bore hole, offering a 3/4" (.750) ball width and a radial load capacity of 18,800 lbs. Made from 4130 heat-treated chromoly, the kit also features tube adapters that are 1-7/8" long, 1-1/4" wide, with 5/8"-18 threads, designed to fit 1-1/4" OD tubing with a 0.120" wall. The tube adapter provides a 1.5" mounting width, suitable for various suspension application.
