3/4" X 3/4" BORE (1LH & 1RH)

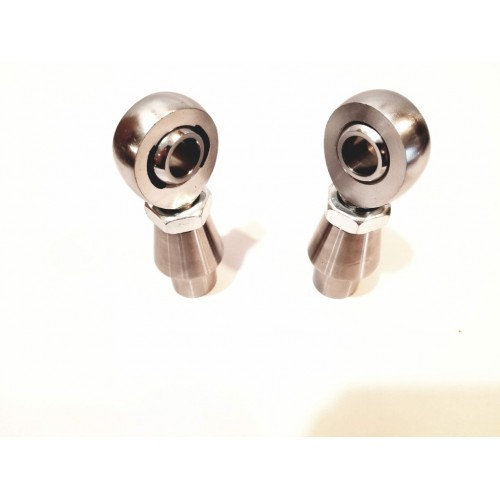

This 3/4" x 3/4" Bore Heim Joint Kit includes one right-hand and one left-hand chromoly Teflon/Kevlar-lined male rod end with 3/4"-16 threads, a .750" ball bore, .875" ball width, and 1.750" thread length, offering a load capacity of 30,000 lbs. The kit comes with matching weld-in threaded bungs designed to fit 1.5" OD tubing with a .120" wall and 1.25" ID, as well as one RH and one LH jam nut, each measuring 1 1/8" wide and 27/64" high. Ideal for heavy-duty suspension and steering applications.
