1.25" X 1" BORE W/ 1" CONE SPACERS (1LH & 1RH)

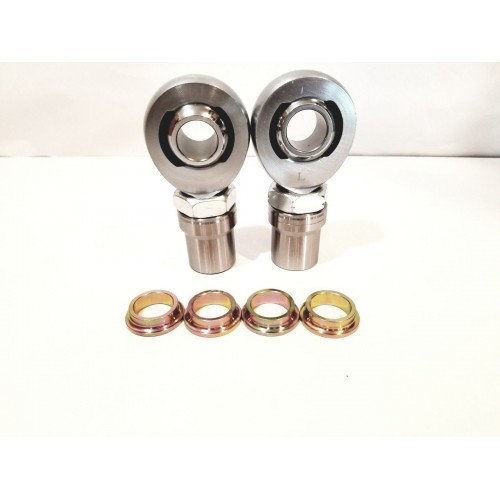

This Panhard kit includes one right-hand and one left-hand 1-1/4”-12 thread chromoly rod end (4130) with a 1" bore, 1.375" ball width, 2.404" thread length, 4.132" center line length, and 5.529" overall length, offering a radial load capacity of 76,800 lbs and enhanced durability via a Teflon Kevlar liner. Also included are matching RH and LH jam nuts, tube adapters (2" long, 2" wide, 1.25"-12 thread) made from 1045 steel, designed to fit 2" OD tubing with a .250" wall and 1.5" ID. The overall width with high misalignment spacers is 2.650", and spacer size can be selected to fit your application.
